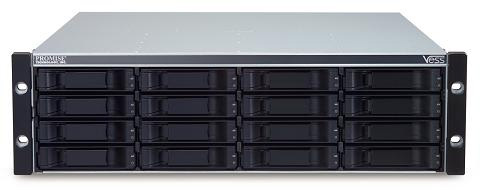

PROMISE VessRAID 1000i Series
Quad Ports iSCSI-to-SAS/SATA RAID 6 Storage System.
Enjoy being Different with VessRAID.
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
VessRAID 1000i features 2U/3U 8 to 16 bays quad ports iSCSI RAID6 subsystem that can function as a direct attached storage (DAS), in a storage area network (SAN), and with VessJBOD expansion, offering a comprehensive storage portfolio for business critical applications in hopes to protect all of your valuable data.
System Highlights and Benefits
- 8/12/16 hot-swappable SAS/SATA 6Gb/s³ or 3Gb/s drive bays in a robust 2U/3U chassis
- Quad-port iSCSI 1Gb access with link aggregation and jumbo frames support
- SMB/CIFS, NFS, FTP support
- Microsoft Active Directory Support
- Client-to-Host Volume Clone, Box-to- Box Replication, and NAS Fusion
- Scale up to 112 Hard Disk Drive via VessJBOD Expansion units
- Single or Dual hot-swap redundant power supply unit with 80PLUS Certified
- OPAS and UPS Monitor via USB service
- Comprehensive embedded web-based management via Ethernet – WebPAM PROe
- Power Scheduler Operation
- MAID 2.0 support
- LCD Panel support (optional)
- Wake-on-LAN support (VessRAID)
- Wake-on-SAS support (VessJBOD)
| iSCSI RAID | |
|---|---|
| VessRAID 1840i | |
RAID 0, 1, 1E, 3, 6, 5, 10(0+1), 30, 50, 60            |
|
| VessRAID 1830i | |
RAID 0, 1, 1E, 3, 6, 5, 10(0+1), 30, 50, 60   |
|
Features:
iSCSI + NAS, Exploit Storage with more Possibilities
VessRAID 1000i series provides iSCSI and NAS1 combined features which enables users to do file and block-based data transaction on the network. iSCSI allows SCSI protocol to operate over TCP/IP and it’s getting popular in various IP-based applications as you can leverage existing network infrastructure to achieve SAN connectivity. NAS devices are easy to deploy and ideal for file sharing over the network. Files on NAS are transparent to users and applications, and its access convenience greatly reduces users’ learning curve on how to download and upload data to the storage. With iSCSI and NAS support, VessRAID leads user to explore broader storage applications and possibilities.
GreenRAID Energy Savings
Being green is important for business now. VessRAID features advanced hardware design using 80PLUS-certified power supplies, and supports complete levels of MAID2.0 that both can greatly improve system’s power effectiveness in management and reduce heat generation. In addition, the power scheduling function allows users to power off the system and performs a disk-to-disk backup or restore on a scheduled basis. As the task completes, system returns to standby until the next one starts, resulting in a considerable 70% cost savings annually.
One-Plug-Auto-Service (OPAS)
OPAS is designed to reduce maintenance complexity and streamline an easier tech support workflow as much as possible. It offers a new level of user convenience unique to PROMISE. With a simple USB stick plugging in, it can provide system information retrieval, firmware auto upgrading, script for quick installation and password resetting.
Designed for Cost-Sensitive Business
Economic slowdown worldwide have caused a number of businesses to either cut their IT budgets or delay their purchasing decisions for new storage equipments, yet there is still need for inexpensive and feature-rich storage solutions as data grows on a day to day basis. The VessRAID family of products provides a reliable data protection you expect from PROMISE to keep data online longer through a cost-effective way for businesses to easily meet storage demands.
Specifications:
| VessRAID 1000i Series Specifications | |||
|---|---|---|---|
| VessRAID System | VessRAID 1720i/ 1820i | VessRAID 1730i/ 1830i | VessRAID 1740i/1840i |
| System and Controller Features | |||
| Form Factor | 2U | 2U | |
| Drive Support | 8 Drives (3.5") | 12 Drives (3.5") | 16 Drives (3.5") |
| SAS(3Gb/s), SATAII(3Gb/s), NCQ, TCQ | |||
| Controller | Single (Intel® IOP348 1.2GHz) | ||
| Host Channel | Quad Ports full-duplex 1Gb iSCSI | ||
| PROMISE Expansion Enclosure | N/A | One Port SAS-wide (x4) for VessJBOD series | |
| Max. Drives Supported | N/A | 108 | 112 |
| Data Cache | 512MB~2GB ECC cache memory with Optional BBU (Battery Backup Unit) | ||
| iSCSI Features | Error Recovery Level 0 Link Aggregation and Jumbo Frames w/ up to 64 Concurrent Sessions CHAP, iSNS and DHCP Microsoft iSCSI MPIO Support |
||
| Command Queue Depth | 1024 | ||
| NAS Features | |||
| Supported Network Protocols | SMB/CIFS (Apple, Microsoft), NFS (Linux/Unix), FTP | ||
| Data Services | Online Volume Clone, Box Replication, NAS Fusion | ||
| Max. Size per Volume/No. per Volume | 16TB/32 | ||
| Concurrent Sessions/Memory | 32/512MB, 64/1GB, 128/2GB | ||
| User Management | Microsoft ADS | ||
| SmartNAVI Features | Backup/Restore Data, Scheduled Operation, User Management, Share Folder Administration, Auto-detect VessRAID and IP Assignment | ||
| Operational Features | |||
| RAID Levels | 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60 | ||
| Hot spares | Global or Dedicated w/ revertible option | ||
| Max. LUNs per subsystem | 256 | ||
| Max. LUNs per array | 32 | ||
| Variable Block and Sector Size | 64KB ~ 1MB stripe block sizes 512B, 1KB, 2KB, 4KB sector size |
||
| Disk Data Formats | Supports Disk Data Format (DDF) for drive roaming between VTrak and VessRAID series systems | ||
| System Management | |||
| Supported OS | Windows 2000, XP, 2003, Vista, 20081 RedHat Linux, SuSE Linux, FreeBSD 7.0, CentOS VMWare ESX 4.0, ESX 4.0 U1 |
||
| Management Tools | WebPAM PROe/SNMP via Ethernet CLI/CLU via RJ-11 or Ethernet LCD Control Panel (Optional) OPAS/UPS Monitor via USB service Power Scheduler Control |
||
| Management Interfaces/Protocols | Ethernet, RJ-11 Serial Port, USB SNMP, SSL, Telnet, SLP |
||
| Event Notification | Email , SNMP, NETSEND, Buzzer, LEDs, LCD Control Panel | ||
| System Information | |||
| AC Input | 90 ~ 264 VAC, 47 ~ 63Hz | ||
| Current (Maximum) | 6A (100V); 3A (240V) | 6A (100V); 3A (240V) | 7/8A (100V); 3.5/4A (240V) |
| Power Supply | Single/Dual 350W 90-264V full-ranging w/PFC 80PLUS® Bronze/80PLUS Efficiency Hot swappable and redundant (Dual) |
Single/Dual 350W 90-264V full-ranging w/PFC 80PLUS® Bronze/80PLUS Efficiency Hot swappable and redundant (Dual) |
Single/Dual 450W 90-264V full-ranging w/PFC 80PLUS® Bronze/80PLUS Efficiency Hot swappable and redundant (Dual) |
| Power Consumption | 167.3 Watts (w/ SAS drives) 73.2Watts (w/o drives) |
218.7 Watts (w/ SAS drives) 82.2Watts (w/o drives) |
242.8 Watts (w/ SAS drives) 72.2Watts (w/o drives) |
| FAN | N+1 Design | ||
| Temperature | 5° ~ 40°C2 (-40° ~ 60°C non operational) | ||
| Relative Humidity | 10% to 80% non-condensing | ||
| Dimensions (H x W x D) | 88.2 x 446.2 x 461 mm 3.5 x 17.6 x 18.1 in |
88.2 x 446.2 x 461 mm 3.5 x 17.6 x 18.1 in |
130.1 x 446.2 x 461 mm 5.1 x 17.6 x 18.1 in |
| Weight | 10.8 / 12.6 kg (23.81 / 27.78 lbs) w/o drives 16 / 17.8 kg (35.27 / 39.24 lbs) w/ drives |
11 / 12.8 kg (24.25 / 28.22 lbs) w/o drives 18.8 / 20.6 kg (41.45 / 45.41 lbs) w/ drives |
13.2 / 15 kg (29.1 / 33.07 lbs) w/o drives 23.6 / 25.4 kg (52.03 / 56 lbs) w/ drives |
| Safety/EMI | CE, FCC Class B, VCCI, BSMI, CB, KCC, C-Tick, UL/cUL, TUV | ||
| Base Configuration | VessRAID 2U/3U Unit w/ Drive Carrier RJ11-to-DB9 Serial Data Cable, Power Cord (Single PSU: 1; Dual PSU: 2) Quick Start Guide, Set of Screws, CD (Product Manual, SNMP files, QSG) |
||
| Warranty and Support | |||
| Warranty | 3 years limited warranty3 | ||
| Supported Hardware Options | LCD Panel, Front Bezel, Sliding Rail, Battery Backup Unit, SAS Cable | ||
¹Microsoft® WHQL for Windows Server 2003 and 2008
²Operational Temperature between 5° ~ 35°C if BBU installed
³BBU is covered by one year limited warranty
Documentation:
Download the PROMISE VessRAID 1000i Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
VessRAID 1000i Series includes: Enclosure, 8-2TB Drives, 2-US power cords, Quick Start Guide, Product CD, slide mount assembly and HDD screws.
