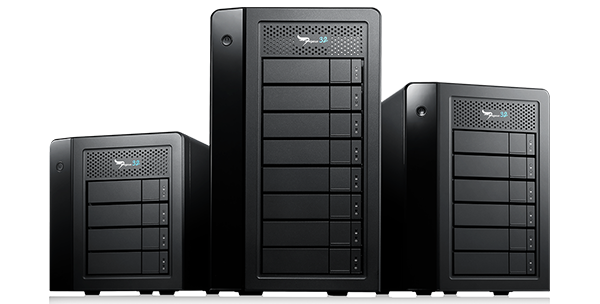

PROMISE Pegasus32
NEW Thunderbolt™ 3 and USB 3.2 Gen 2 Hardware RAID Storage for Creative Professionals
Promise Products
Pegasus32 Series with Hard Drive (HDD)
Pegasus32 R4 16TB (4 x 4TB SATA HDD) RAID System with 0.7M Thunderbolt3 cable
#P32R4HD16US
Get a Quote!
Get a Quote!
Pegasus32 R6 24TB (6 x 4TB SATA HDD) RAID System with 0.7M Thunderbolt3 cable
#P32R6HD24US
Get a Quote!
Get a Quote!
Pegasus32 R6 48TB (6 x 8TB SATA HDD) RAID System with 0.7M Thunderbolt3 cable
#P32R6HD48US
Get a Quote!
Get a Quote!
Click here to jump to more pricing!
Overview:
Pegasus32 now includes powerful backup software powered by ChronoSync
Get the most out of your Pegasus32 with ChronoSync Pegasus Edition software bundled with every Pegasus32. ChronoSync Pegasus Edition allows you to backup your data, clone your hard drive, sync files between two computers and store redundant backups in the cloud.
- Same great features and performance as the Pegasus3 series that you know and depend on.

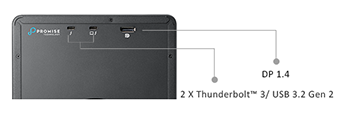

- Connect to either Thunderbolt™ 3 enabled host at 40Gbps or USB 3.2 Gen 2 enabled host at 10Gbps!
Thunderbolt™ 3/ USB cable included
- Supports 8K monitor via the full size 4-lane DP1.4 port!
- Power your hosts up to 85W with Thunderbolt™ 3 port!
- Up to 112TB of raw capacity with R8.
- Blazing speed up to 40Gbps. Rock-solid HW RAID5+ protection.
- Hot-swap 7200 rpm HDDs. Dual ThunderboltTM 3 ports use for daisy chain. High quality, reliable, and quiet.
- Supports Kensington Lock.
- Promise SW Utility and cable included.
- 3Y HW Warranty.
Specifications:
 Up to 56TB Over two hours of uncompressed 8K footage |
 Up to 84TB Best value for performance, protection, and capacity |
 Up to 112TB Highest capactiy and protection |
|
| Models | Pegasus32 R4 | Pegasus32 R6 | Pegasus32 R8 |
|---|---|---|---|
| Form Factor | 4-Bay hardware RAID enclosure | 6-Bay hardware RAID enclosure | 8-Bay hardware RAID enclosure |
| Interface | 2x USB-C ports either Thunderbolt™ 3 (40Gbps) or USB 3.2 Gen 2 (10Gbps) | ||
| RAID Level | 0, 1, 5, 6, 10, JBOD | 0, 1, 5, 6, 10, 50, JBOD | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Compatibility | Enabled systems with macOS 10.14 or newer and Windows 10 x64 | ||
| Capacity | up to 56TB | up to 84TB | up to 112TB |
| Dimensions | Height: 7.5 in / 19.2 cm Width: 7.3 in / 18.7 cm Length: 9.6 in / 24.5 cm |
Height: 9.8 in / 25.1 cm Width: 7.3 in / 18.7 cm Length: 9.6 in / 24.5 cm |
Height: 12.2 in / 31.0 cm Width: 7.3 in / 18.7 cm Length: 9.6 in / 24.5 cm |
| Weight | 15 lb / 6.8 kg | 20.1 lb / 9.1 kg | 24.2 lb / 11 kg |
| Warranty | 3-year warranty | ||
| Requirements | Workstation or laptop with Thunderbolt™ 3 port or USB 3.2 port* | ||
Thunderbolt™ 3 / USB cable included (USB Type-C)
* One host connection at a time

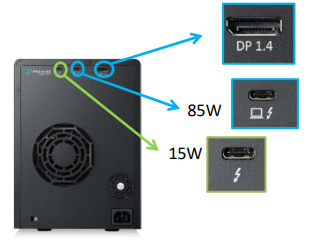

Pegasus32- What's New
- Support macOS 10.14 and above
- Support Windows 10 x64
- Support USB 3.2 HOST
- One DP port (DP 1.4) supported
– Resolution 8K @ 30Hz HDR Deep Color - Support up to 85W power charging
| Pegasus3 | Pegasus32 | |
|---|---|---|
| USB interface | Not support | (USB 3.2 Gen 2) |
| DP Port | Not support | (DP 1.4) |
| Boot for Windows | Not support | (USB mode) |
| Power Charging | Not support | (up to 85W) |
| Native 4K HDD | Not support |
P3 & P2 Series Differences
| Pegasus32 | Pegasus3 | |
|---|---|---|
| Display Port | Yes | No |
| Native DP Display support | (4K x 2) or (5K x 1) or (8K x 1) *DP 1.4/HDMI 2.0 |
(4K x 2) or (5K x 1) *DP 1.2a/HDMI 2.0 |
| Supported Interface | Thunderbolt 3 (40Gb/s) USB 3.2 Gen 2 (10Gb/s) |
Thunderbolt 3 (40Gb/s) |
| Max. RW Performance | Thunderbolt : 2800 MB/s USB : 1000 MB/s |
Thunderbolt : 2800 MB/s |
| Kensington Security Slot | Yes | Yes |
| Link LED | 1 for Thunderbolt/USB Link | 1 for Thunderbolt Link |
| Feature | Work with USB Host or Thunderbolt Host | Work with only Thunderbolt Host |
| Power Charging | Port A : 85 W Port B :15 W |
Port A : 15 W Port B :15 W |
| Cable included | 0.7m 40Gb/s passive Thunderbolt™ 3 cable [Thunderbolt 3 / USB cable] |
1m 40Gb/s active Thunderbolt™ 3 cable [Thunderbolt 3 cable] |
Pegasus32 support USB 3.2 Gen 2 (10Gbps) speed and is backward compatible to USB3.2 Gen 1 (5Gbps) and USB2.0
Recommended to use “Thunderbolt passive cable” on Pegasus32.
Documentation:
Download the PROMISE Pegasus32 Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
