PROMISE Pegasus R12
Elegant high-performance, Big capacity in a compact system
Click here to jump to more pricing!
Overview:
Pegasus R12, the new storage platform for digital media creators. In addition to HD/4K/8K video editing, the R12 is perfect for audio, digital art, photography storage and touch up, or wherever your imagination takes you.
40Gbps Thunderbolt™ 4 performance delivers up to 3,000MB/s. The innovative new compact 12-bay design of the Pegasus R12 enables easy access to the HDD for rapid disk replacement. Pegasus R12 runs whisper quiet on the desktop and is designed for easy portability.
Pegasus R12 provides up to 240TB utilizing PromiseRAID hardware RAID engine. PromiseRAID is a core technology for the PROMISE Pegasus line, renowned for storage performance and data safety. A consequence of very large capacity HDD is an increased risk of failure. Predictive Data Migration (PDM), exclusive to PromiseRAID systems, performs periodic storage media analysis to anticipate potential drive problems and automatically takes corrective action before any drive failure occurs.
Highlights
Thunderbolt™ 4 technology
Up to 3,000MB/s Thunderbolt™ 4 performance is a must-have for time pressured digital creators
12-Bay Desktop Design
New 12 bay, elegant and compact design provides the highest capacity density, equivalent to 8 bay enclosure size in the market
Up to 240TB capacity
Equipped with twelve 20TB HDD, new Pegasus R12 provides up to 240TB capacity.
PromiseRAID
Proprietary technology renowned for performance and data safety.
Green technology inside
Pegasus R12 inherits the excellent power management features of PROMISE storage systems. If the host computer enters sleep mode, is shut down, or if the Thunderbolt™ connection is disconnected, the Pegasus R12 enters energy savings mode.
Features:
Thunderbolt™ 4

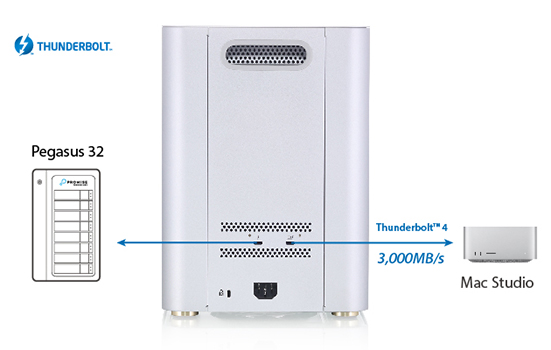

Pegasus R12 utilizes the Thunderbolt™ 4 technology 40Gbps transfer speed, equipped with the industry renowned PromiseRAID engine. Pegasus R12 offers flexibility with two Thunderbolt™ 4 (Type-C) ports supported on current and earlier Mac and Windows generations.
New 12-Bay Desktop Design

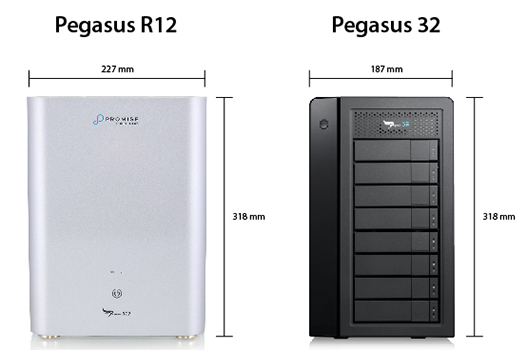

Slick, elegant and compact 12-bay design packs up to 240TB HDD (20TB x12 3.5" enterprise nearline HDD) in an enclosure nearly the same size of most 8-bay enclosures in the market. PROMISE engineered this high-density design that enables quick and easy drive swapping and produces very low noise output using intelligent fan control. Pegasus R12 is the compact, large capacity, whisper-quiet storage workhorse for your desktop.
Easy Handling

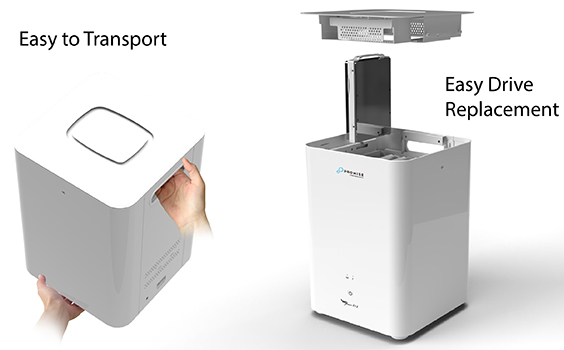

Pegasus R12 compact design that enables moving from studio to studio, set to set easily. Once connected with Thunderbolt™ cable and power cord, Pegasus R12 automatically wake and sleep in accordance with host computer activities to save power and reduce noise. Pegasus R12 slick and elegant design with top cover features a clean appearance, easy drive replacement, while prevents accidental drive removal.
PromiseRAID
PromiseRAID is renowned in the storage industry for stability and performance. The PromiseRAID engine has proven itself in enterprise storage for decades. This same innovative technology is at the core of the entire Pegasus storage line. Drive failure risk increases as number of drives and the capacity of the drive increases. Predictive Data Migration (PDM) feature, a part of PromiseRAID, performs workflow to periodic media check for taking action automatically before drive failure happen.
GreenBoost

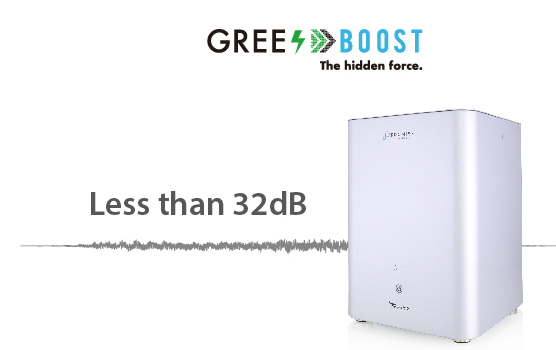

Pegasus R12 continues power saving features built in the Pegasus systems. Once connected with Thunderbolt™ cable and power cord, Pegasus R12 power management automatically wake and sleep in accordance with host computer activities to save power and reduce noise. If the host computer enters sleep mode, is shut down, or the Thunderbolt™ connection is disconnected, the Pegasus R12 enters energy savings mode.
Specifications:
| Pegasus R12 Specifications | |
|---|---|
| Form Factor | 12-Bay Tower |
| Drive Support | 3.5″ SATA 6Gbps |
| Processor | Storage Processor 4 cores, 2.2 GHz |
| Memory | 8GB DDR4 ECC DIMM |
| Interface Type | Thunderbolt™4 40Gbps / USB4 40Gbps / Thunderbolt™3 40Gbps |
| Thunderbolt™ Port | Thunderbolt™4 ports x2 (Upstream x1, Downstream x1) |
| External Monitor | One downstream Thunderbolt™4 port can connect up to dual 4K monitors or single 8K monitor |
| Power Delivery | 85W (Thunderbolt™ host and USB4 host) |
| Port Type | USB Type-C |
| RAID & Features | |
| RAID Level | RAID 0, 1, 5, 6, 10, 50, 60, JBOD |
| Hot Spare | Yes |
| Max LUNs | 128 |
| Hot Swap | Yes |
| Software Highlight | |
| Supported OS | macOS, Windows |
| Management Tool | PROMISE UtilityPro |
| Product Specific Features | Intelligent Cooling, Drive SMART health Polling |
| Physical Information | |
| Dimension | 227mm(L) x 227mm(W) x 318mm(H) |
| Weight | 12.3kg |
| Power Supply | AC 100~240V auto-ranging, 50~60Hz, 350W |
| Environment | |
| Temperature Range | Operating: 5°~35°C, Non-operating: -40°~60°C |
| Humidty | Operating: 10%~95% non-condensing , Storage: 10%~95% non-condensing |
| Standard | EMC: FCC, CE , Safety: cTUVus, CB |
| Green Certificate | ErP/EuP, RoHS, WEEE |
| Warranty and Support | |
| Warranty | 3-years standard warranty, optional extended warranty, and on-site parts replacement program (PROMISE ServicePlus) available. |
| Support | 24/7 PROMISE eSupport Portal (support.promise.com), optional 24/7 phone and email support available. |
Documentation:
Download the PROMISE Pegasus R12 Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
