PROMISE SANLink3 T1
Get more from existing networks or take advantage of new infrastructures

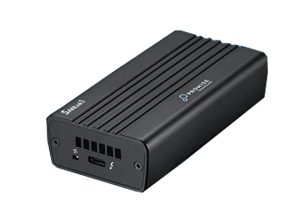

PROMISE SANLink3 T1

Sorry, this product is no longer available, it is replaced by the SANLink3 N1.

Overview:

Get more from existing networks or take advantage of new infrastructures

SANLink3 T1 NBase-T lets you connect at 1, 2.5 or 5Gbps over most existing Ethernet wiring or up to 10Gbps on the latest high-speed networks.

Convenient and portable connectivity solution

SANLink3 T1 is bus-powered and requires no separate power supply. With its compact size and included Thunderbolt™ 3 cable, you can now stay mobile without sacrificing connection speeds.

Do more with a singleThunderbolt™ 3 port

Daisy-chain multiple Thunderbolt™ 3 devices – High resolution displays, Pegasus3 RAID storage and connect to 10G Ethernet with a SANLink3 T1 and still get maximum performance!

The most affordable high speed Ethernet connection solution

SANlink3 T1 raises the bar for high-speed Ethernet connectivity and affordability. No other Thunderbolt™ 3 adapter provides these capabilities in such small compact package.

  • The SANLink3 Series with ThunderboltTM 3 technology revolutionizes how creative professionals connect ThunderboltTM 3 device to an existing Ethernet infrastructure
  • High-speed NBASE-T technology is designed to maximize the available line rate of ThunderboltTM 3
  • Faster network access streamines creative and high demand workflow needs
  • Bus-powered, compact, quiet and lightweight, no power adapters or big bulky boxes, easy to install and transportable
  • Simple setup: plug your SANLink3 into a ThunderboltTM 3 port, load the driver found in Promise download site and you’re done.

SANLink3 for a High Speed Ethernet Infrastructure

  • SANLink3 NBASE-T1 provides Ethernet connectivity to your Ethernet network from your ThunderboltTM 3 enabled portable or desktop computer.
  • Fast ThunderboltTM3 provides for twice the throughput of ThunderboltTM 2

PROMISE SANLink3 T1 Thunderbolt

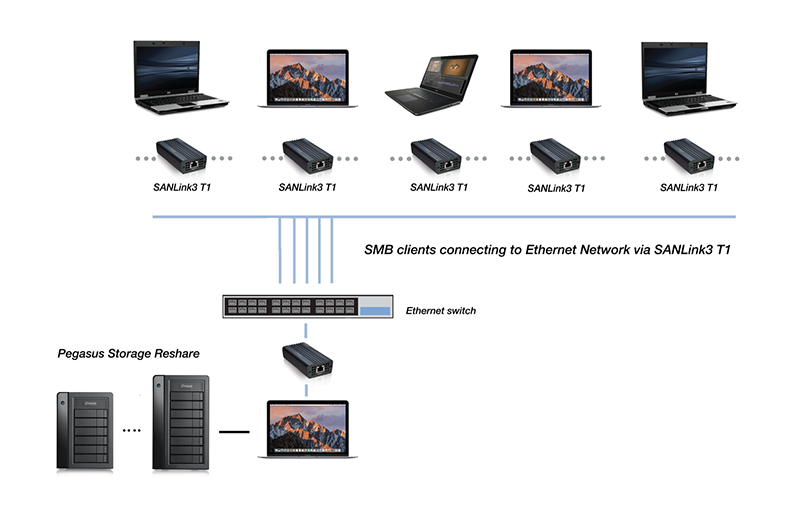

A Complete ThunderboltTM 3 Based Storage Workflow

Promise offers ThunderboltTM 3 based solutions for all of your storage needs, leveraging Pegasus3 storage devices and SANLink3 bridge adapters

PROMISE SANLink3 T1 Storage Workflow

Features and Benefits:

Benefits

  • Provides portable and desktop systems with high-speed Ethernet connectivity
  • Improves connectivity for power users via a simple copper Ethernet cable
  • High-speed NBASE-T connectivity is ideal for creative professionals
  • Supports Jumbo Frames

Highlights

  • Enables High-Speed Ethernet connectivity using ThunderboltTM 3 port
  • Compact bus-powered design connects easily; runs cool and quiet
  • Supports Xsan and StorNextTM file systems
  • ThunderboltTM 3 standards compliant and Intel approved
  • Nothing else to buy - ThunderboltTM 3 cable included

Specifications:


SANLink3 T1 Specifications
External Ports NBASE-T Ethernet Port
Thunderbolt™ Ports Single ThunderboltTM 3 technology port (40 G bps)
Transfer Rates 920MB/s at 10Gb/s
600MB/s at 5Gb/s
300MB/s at 2.5Gb/s
125MB/s at 1Gb/s
Host Bus Type Single 40 Gbps ThunderboltTM port
Protocols IEEE 802.3an - 10GBASE-T
IEEE 802.3bz - 2.5G/5GBASE-T
IEEE 802.3ab - 1000BASE-T
IEEE 802.3u - 100BASE-TX
Dimensions 1.1” (H) x 4.25” (W) x 2.2” (D)
Weight 10 oz.
Warranty 3-year warranty
Requirements Workstation or portable with ThunderboltTM 3 port (ThunderboltTM3 cable included)
OS Support OS X 10.12 or later
Windows 7 & 10 (64-bit)

Documentation:

Download the PROMISE SANLink3 T1 Datasheet (PDF).
