PROMISE VTrak D5320
Unified Storage System

PROMISE VTrak D5320

Promise Products
VTrak D5320 Series
2U/24-Bay 4-port 10G RAID subsystem Dual Controllers with 24x 480GB SAS SSD
Total raw capacity 11TB Flash capacity, 3-year NBD PSP included
#D5320XDSSD0
Our Price: $49,299.00
Call For Lowest Price!
2U/24-Bay 4-port 10G RAID subsystem Dual Controllers with 24x 960GB SAS SSD
Total raw capacity 23TB Flash capacity, 3-year NBD PSP included
#D5320XDSSD1
Our Price: $73,299.00
Call For Lowest Price!
2U/24-Bay 4-port 10G RAID subsystem Dual Controllers with 24 x 1.92TB SAS SSD
total raw capacity 46TB Flash capacity, 3-year NBD PSP included
#D5320XDSSD2
Our Price: $102,799.00
Call For Lowest Price!
2U/242-Bay 4-port 10G RAID subsystem Dual Controllers with 24x 3.8TB SAS SSD
Total raw capacity 92TB Flash capacity, 3-year NBD PSP included
#D5320XDSSD3
Our Price: $129,999.00
Call For Lowest Price!

Click here to jump to more pricing!

Overview:

VTrak D5000 series unified storage systems deliver uncompromising scalability, flexibility, and affordability for the mid-tier while providing simplicity and efficiency for minimizing total cost of ownership. Customers can respond more quickly to changing IT needs with VTrak D5000 series unified storage at an affordable price.

Accelerate Your Business

VTrak D5000 enables data driven business with an integrated combination of high-performance hardware, adaptive storage software, and flexible protocols at an affordable price. The platform is optimized for high bandwidth and low latency which makes it a perfect storage solution for mid-tier IT applications, surveillance, backup, and running multiple mixed workloads.

Accelerate Your Business

Unlock Power of Flash Cache

Flash Cache accelerated VTrak D5000 storage systems deliver impressive performance, boosting throughput and lowering latency. User has option to add Flash Cache for read and write acceleration. PROMISE intelligent data caching automatically promotes hot data to cache in real time, so you get the full benefit of flash performance.

Unlock Power of Flash Cache

All Inclusive Pricing

VTrak D5000 all-inclusive pricing bundles hardware, software, and three years of Next Business Day service at an affordable cost.

All Inclusive Pricing

Configurations To Suit Any Need

VTrak D5000 series comes in four models D5300/20 (2RU), D5600 (3RU), and D5800 (4RU) giving users the flexibility on form factor.

Configurations To Suit Any Need

Features:

Performance & Scalability

  • Scalable up to 15 JBODs or 512 drives
  • NAS
    • 4K IOPs: 42,334
    • Sequential Performance: 3867MB/s reads 3525MB/s writes
  • iSCSI
    • 4K IOPs: 93,018
    • Sequential Performance: 4214MB/s reads 3376MB/s writes
  • Fibre Channel
    • 4K IOPs: 141,285
    • Sequential Performance: 6,507MB/s reads 4360MB/s writes

High Availability & Resiliency

  • Everything redundant for no downtime
  • Active-Active Dual Controller with ALUA support for access flexibility
  • Background data Integrity scrub with parity rebuild
  • Predictive Data Migration (PDM) to minimizes maintenance

Simplify Your Storage Environment

  • Consolidate SAN and/or NAS workload on the same storage solution
  • Concurrent FC & ISCSI connections for SAN as well as NAS protocols

Realize Superior Value

  • Accelerate enterprise applications
  • Reduce latency and speed operations with up to 50% higher performance

Consolidate Infrastructure

  • Massively scale up to 512 drives
  • Flexible 10GbE and optional 8/16G FC, with 6G SAS/SATA1 and 12G SAS interfaces.

Eliminate Downtime

  • Fully redundant design for enterprise
  • Active-Active Dual Controller with ALUA support for access flexibility
  • Upgrade & expand without downtime

Proactive & Predictive Analytics

  • Background data integrity scrub with parity rebuild
  • Predictive Data Migration (PDM) to minimize maintenance

Applications

  • General IT Infrastructure
  • Virtualized Applications
  • High Bandwidth Applications
  • Backup and DR target

Specifications:

VTrak D5320 Specifications
Form Factor 2RU
Drives Capacity 24 (SFF)
Host Connect Interface
  • iSCSI and NAS Storage Sub-System
    D5320xD: Dual HA Controller w/4-port 10GSFP+
    D5320xS: Single Controller w/2-port 10GSFP+

  • FC, iSCSI and NAS Unified Storage Sub-System
    D5320fxD: Dual HA Controller w/4-port 10GSFP+ and 8-port 16Gb FC
    D5320fxS: Single Controller w/2-port 10GSFP+ and 4-port 16Gb FC
Storage Expansion Ports 2 x 2 12Gb SAS Mini-SAS (SFF-8644) per controller
Management Ports 2 x RJ-45 1Gb Ethernet and 1 x RJ-11 Serial Port per controller
Expansion Online Capacity/Volume Expansion up-to 15 JBOD's
Max Pools/Volumes 256 volumes per pool, Max 32 pools per System; Max 512 Snapshots / 128 Clones per volume
Data Services
  • Snapshot
  • Read/Write Cache
  • Compression
  • Thin/Thick Clones 2
  • Local Replication/Migration
  • De-dup3
  • Online Capacity Expansion
  • Thick/Thin Volumes

Optional: Pair Management, Remote Thickclone, Cloud Backup, WORM

Advanced Storage Features
  • Asymmetric LUN Unit Access (ALUA)
  • LDAP for central user management
  • Linux Permission, POSIX ACL,NT ACL
  • Advanced Cache Mirroring over PCIe Gen3
  • Microsoft AD, LDAP and OD
Supported Network Protocols SMB/CIFS (Windows, MAC), NFS (Linux/Unix), FTP, WebDAV
Max. Share Disk 1024 per pool
Max. Share Disk Size 1PB
Concurrent Sessions / Memory 256 for each protocol /32GB, 128 for each protocol /16GB
Max. Account 10K
Supported Domain Microsoft Active Directory, LDAP, Apple Open Directory
Max. Domain Account 100k
Data Management Permission Management, Quota Management, Online Expansion
RAID Levels 0, 1, 5, 6, 10, 50, 60 RAID Stripe Support 64K, 128K, 256K, 512K and 1MB
Hot spares Global or Dedicated
Background Scrub
  • Media Patrol & Redundancy Check
  • Background Synchronization
  • Partial Rebuild
  • Task Scheduler for Background Activities
Proactive/Predictive Features
  • Predictive Data Migration (PDM)
  • Intelligent Bad Sector Remapping
  • NVRAM Error Logging
  • Drive Power Management (MAID)
  • SMART Error Handling and Write Hole Table
Supported OS Windows Server 2008, 2012, 2016, macOS 10.x, RHEL 6.5 to 7.2, SLES 11, 11 SP4, and 12 SP1
Certifications VMware ESXi 6.5 & Citrix Server 7.3
Management Interfaces Web Based management using WEB, CLI, SSH, SNMP
Power Adapter Voltage: 100--240Vac Auto--Ranging
Max Current: 9A @ 100Vac; 4.5A @ 240Vac
Power Efficiency >80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range, 80Plus Certified PSU
Temperature Operational: 5° to 35°C,
Non-Operational: -40° to 60°C
Humidity Operational: 20% to 80%,
Non--Operational: ~ 95% (Non-Condensing)
Noise Levels & Shock < 60dB, 25C, Operational: 5G, 11 ms Duration, Non-Operational: 30G, 11ms duration
Vibration Operational: 0.2G, 5 to 500Hz (sine wave) ; 0.41G, 3-10-200-500Hz (Random) , Non-Operational: 1G, 5 to 500Hz (sine wave) ; 2.256G, 5-80-350-500Hz (Random)
Safety EMC Class-A: CE, FCC, VCCI, BSMI, RCM
Safety: IEEE CB, cTUVus
Environmental: RoHS2, GreenPC, WEEE
Dimensions 88mm x 447mm x 427mm (3.5” x 17.6” x 19.96”)
Weight 16.7Kg w/o drives
21.2Kg w/ drivess
Warranty 3-year full system limited warranty including PROMISE PSP, optional extended warranty
Support 24/7 e-mail and phone support, 24/7 access to PROMISE site-drives, firmware, and compatibility list

2Thick Clones supported in SR1.1 or newer

Views:

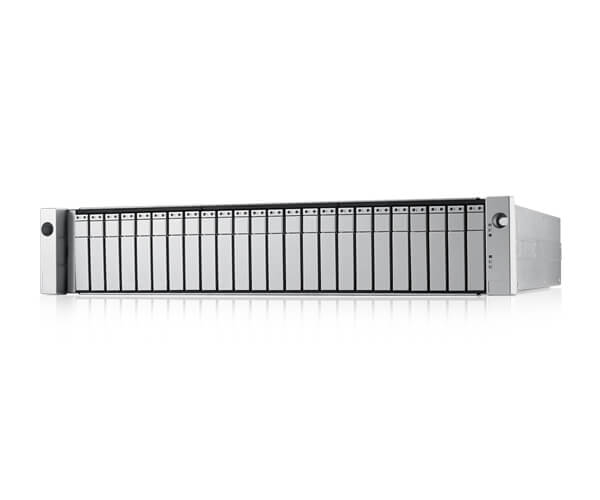

VTrak D5300 Front
VTrak D5300 Angled

Videos:

Documentation:

Download the PROMISE VTrak D5000 Series Datasheet (PDF).
