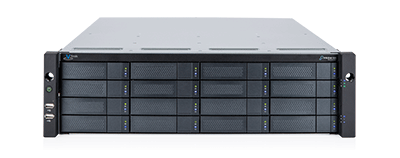

PROMISE VTrak N1616
A major boost for digital media workflow
Click here to jump to more pricing!
Overview:
High Performance, High Availability
The new eight 10G-port VTrak N1616 will improve your creative media work-flow efficiency with new performance enhancing features
Edit
4K/8K Video
POST-PRODUCTION
Boost
TierBoost
Up to
6000MB/s
PERFORMANCE
Performance

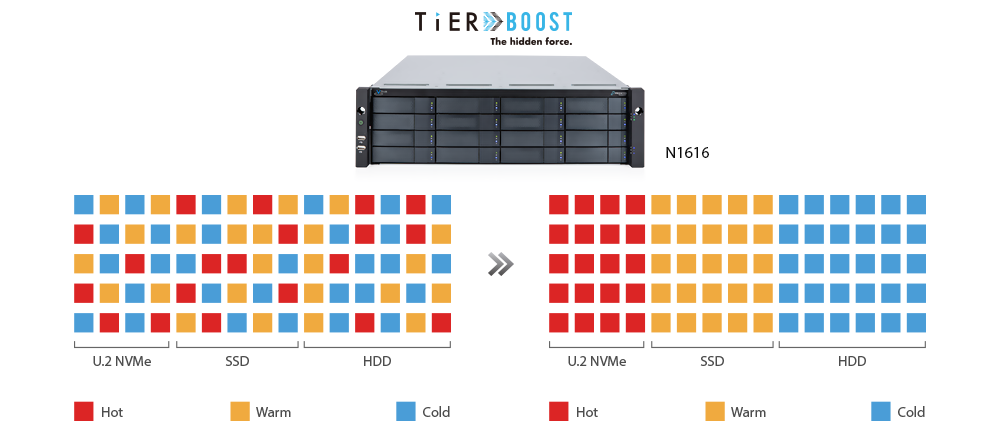

TierBoost available on the VTrak N1616, is a data tier management service that automatically classifies data by frequency of access. “Hot” data is migrated to the fastest tier (NVMe SSD), while the “Cold” data is placed in lower priority tier (SATA HDD), a middle tier (SATA SSD) contains “Warm” data with frequency access in between the other tiers.
Data Protection is Essential
Protection against data loss is ensured by the famous PromiseRAID engine featured in the entire VTrak line of network storage systems. Additional backup mechanisms to cloud or remote storage are easily managed using the web-based management interface.

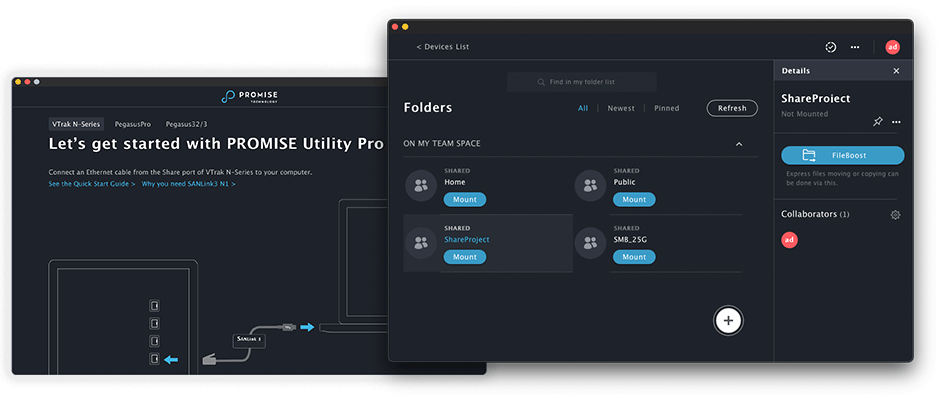

Manageability
Simplified administration is another win for VTrak N-Series. The system is shipped ready to use with a Shared Storage pool that includes an administrator-controlled Team folder setup for immediate sharing. The software for both administrator and client is very easy to use, with an intuitive GUI. The default setup requires very little administration yet still gives complete access control to the administrator. More advanced system administration is available using the web-based management user interface.
Features:
Shared Storage Optimized for Post-Production Workflow and Team Sharing
Perfect for collaborative workflow features on Adobe Premiere Pro, Final Cut Pro X, Autodesk Flame, etc.
Performance
VTrak N1616 with TierBoost: up to 6GB/3GB Read/Write throughput, options of 8 x 10G Base-T, 8 x 10G SFP+ or 4 x 25G SFP28
TierBoost
Automatic or manual configuration options are used to classify digital assets for efficient use over the network. Most frequently used files remain in most rapid tier.
Easy to Use
Intuitive and simple user interface for data administration and rich media team access. Simplicity and low cost of Shared storage.
Data Protection
The robust PROMISE RAID engine is known for stability and high performance. Easy backup to Shared Storage and Cloud.
Specifications:
| VTrak N1616 Specifications | |
|---|---|
| Form Factor | 3U |
| Drive Support | 3.5" & 2.5" SATA 6Gb/s HDD/SSD, U.2 NVMe |
| Processor | Intel CPU i7-8700. 3.2GHz. 12MB Cache.65W 6 Cores |
| Memory | Default 64GB (Maximum: 128GB) |
| Max HDDs | 16 |
| Memory Slot | 4 x Long-DIMM DDR4 |
| Drive Bays | 16 x 3.5-inch |
| Boost | PROMISE TierBoost (U.2 NVMe/SSD/HDD Tiering) |
| RAID Level | RAID 0, 1, 5, 6, 10, 50, 60 |
| Software Highlight | |
| Supported OS | Windows 10 and macOS 10.15 above |
| Management Tool | WebPAM Insight |
| Shared Storage Features | |
| Network Protocol | CIFS / NFS / FTP / WebDAV |
| Max Storage Capacity | 18TB x 16 |
| Concurrent CIFS Session | 256 |
| Throughput | With 10 SSD TierBoost
10G Base-T
Read : 6000 MB/s Write : 3000 MB/s 10G SFP+
Read : 6000 MB/s Write : 3000 MB/s 25G SFP28
Read : 6000 MB/s Write : 3000 MB/s |
| Physical Information | |
| Gigabit (RJ45) | 2 |
| LAN Port | 10G Base-T : 8-Port / 10G SFP+ : 8-Port / 25G SFP28 : 4-Port |
| USB Port | USB2.0 x 2 (Front) & USB3.2 x 4 (Back) |
| Graphic Port | HDMI x 1; VGA x 1 |
| Serial Port | Yes |
| Dimension | 131mm x 447 mm x 503mm |
| Weight | 34Kg (with HDD) |
| AC Input | (550W x 2) 100 ~ 240V AC, 47 ~ 63Hz |
| Power Consumption | 110V, Power Consumption: 306W 230V, Power Cosnumption: 296W |
| Fan | System fan: 4500RPM.12V |
| Environment | |
| Temperature Range | Operating: 5° ~ 35°C (non-operating: -40° ~ 60°C) |
| Acoustic Noise Levels | with cable cover Level 10 : 39.7db (w/o cable cover) Level 10 : 44db |
| Warranty and Support | |
| Warranty | 3-years standard warranty, optional extended warranty, and on-site parts replacement program (PROMISE ServicePlus) available. |
| Support | 24/7 PROMISE eSupport Portal (support.promise.com), optional 24/7 phone and email support available. |
Documentation:
Download the PROMISE VTrak N-Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
