PROMISE Vess A6600P
Storage Solutions Designed for Surveillance
Get a Quote!
Click here to jump to more pricing!
Overview:
The Vess A6000 Series storage appliance is specially engineered for IP video surveillance deployment on medium to large scale; ideally suited for surveillance systems in banks, malls, casinos, factories, warehouses, commercial, residential, governmental or private enterprises. The subsystems are capable of continuous recording and playback operation without dropping frames. Video data is protected by PromiseRAID on the Vess A6000 and any additional capacity on Vess R Series.
More Flexible Deployment with Linux OS Supported
For those who prefers Linux OS than Windows to build up their surveillance system, Promise Vess A series support the multiple Linux distributions on diferent Vess A models to meet the various requirement to deploy the Linux-base VMS in their surveillance back-end system(*). This helps the Linux users have more options for their surveillance system deployment to enjoy the beneft of Linux OS.
*The supported Linux distributions is listed on the datasheet and please contact your channel partners if you need others.
Higher Capacity with Better Design
Two options for large HDD capacity enclosures are available: a 3U 16-drive (Vess A6600) and 4U 24-drive (Vess A6800). Combined with Promise Technology know how creates an outstanding combination of performance and reliability for Midsize to Large-Scale surveillance deployments. For larger storage system requirements, the system is cost effect using the Promise JBOD products to extend capacity without the added expense of an additional RAID server.
Reduces Deployment Costs and Complexity
Support and equipment costs are reduced; without a separate RAID storage unit to manage, there is no longer a need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, the Vess A6000 Series reduces interoperability conflicts caused when integrating different hardware.
SMARTBOOST Technologies
PROMISE proprietary SMARTBOOST™ Technology provides the most stable and high performance storage solution for your surveillance system. Performance that can be limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST™ Technology. With the optimized software features and FRU hardware design, you have the best stability and storage performance with the best C/P ratio.
Predictive Playback
Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.
Remote Active Service
Takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.
Sequential Pattern Recording
Eliminates the heavy workloads caused by random write patterns; this feature monitors recording patterns and collects data in the cache buffer and writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.
Reduce the complexity of Maintenance by OPAS
One Plug Auto Service (OPAS), a feature unique to Promise’s video surveillance solutions, ffering user convenience, reduced complexity, lower maintenance cost and streamlined technical support. OPAS enables users to easily collect all the necessary logs and data used by the Promise support team to analyze.
Features and Benefits:
- Optimized for Surveillance - Storage appliance optimized for IP video surveillance
- Midsize to Large-Scale Solution - Ideal for more than a hundred full-HD IP cameras, perfect for banking, retail, gaming, manufacturing, and more.
- Cost Effective & Scalable - Integrated solution results in less management overhead; it’s easy to expand storage capacity using iSCSI connection to PROMISE Vess R/J storage hadware systems for massive storage capacity potential
- Extensive VMS Support - Certified/tested with the world’s leading video management software.
- Easy to Administer & Maintain - Hot swappable drive bays, redundant power supplies, & One Plug Auto Service (OPAS) ensure Vess is incredibly easy to administer and maintain.
- PROMISE SmartBoost - For robust, error free performance in video recording applications.
Specifications:
| Vess A6600P Specifications | |
|---|---|
| Camera Range1 | 170 |
| Form Factor | 3U, 19" Rackmount |
| Number Of Drives | 16 Drives (3.5") |
| Drive Type | 12Gbs SAS/ 6Gbs SATA @ 3.5", SSD capable @2.5"2, Hot Swappable |
| Controller | Single |
| System Processor | Intel® Xeon E series |
| System Memory | 16GB x 2 Default (Max 128GB) |
| I/O | 2x Gigabit Ethernet |
| Internal Storage | 256GB (NVMe M.2) |
| Storage Expansion | Optional PROMISE iSCSI Storage(Vess R3600) |
| # of USB Ports | USB2.0 x 2 (Front) / USB3.2 x 4(Back) |
| PCI Express Ports | 1x8-lane Gen3 |
| Graphics | D-sub x 1, DP x 1, HDMI x 1 |
| RAID Levels | RAID 0, 1, 5, 6, 10, 50, 60 |
| Hot spares | Multiple global or dedicated hot-spare drives with revertible option |
| Max LUNs per system/array | 256/32 |
| Supported OS (64-bit) | Windows 10, Windows 2016 |
| Management Tools/Interface | Graphical UI/SNMP via Ethernet, CLI via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration |
| Appliance Mode | Surveillance Optimization @ Arrays in Normal and Degrade |
| Event Notification | Email, SNMP, Buzzer, LEDs |
| AC Input | 100 ~ 240 VAC, 60 ~ 50Hz |
| Current (Maximum) | 8-4A |
| Power Supply | Redundant 550W for each power, Hot swappable N+1 Design (80 PLUS certified) |
| System Controller | Replaceable FRU design |
| Temperature | 5° ~ 40°C (-40° ~ 60°C non-operational) |
| Dimensions | 131 x 503 x 447 mm (5.1 x 19.8 x 17.6 in) |
| Weight | System W/O HDD: 16.11kg System W/ HDD: 26.84kg |
| Safety and EMI Certification | CE, FCC, VCCI, RCM, BSMI, KC, (EMI Class A), CB3, cTUVus4 |
| Warranty | 3 year limited warranty5 |
| Optional Accessories | Sliding Rail, 4/8/16 GB DDR4 Memory |
1 The ideal camera range were the test output with fully populated enclosure and 16GB memory under 1080P/30FPS/5Mbps, H.264
2 For 2.5” SSD/HDD it will need to use different optional carriers.
3 CB Report is tested according to IEC/EN 60950-1 and IEC/EN 62368-1
4 cTUVus label marking is tested according to UL 62368-1 and CAN/CSA-C22.2 NO. 62368-1.
5 Available to purchase the extra 2 years warranty to total 5 years warranty.
Views:

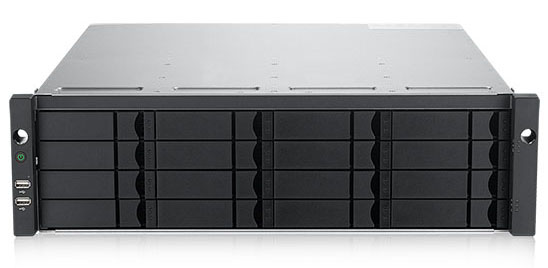

Front View
Left Angle View
Documentation:
Download the PROMISE Vess A6000 Series Datasheet (PDF).
