PROMISE Vess A6800
Storage Solutions Designed for Surveillance


PROMISE Vess A6800

Promise Products
Vess A6000 Series
Vess A6800 4U/24-bay with 96TB (4x24) 3.5" 7200rpm SATA HDD"
Win10 OS Installed
#VA6800HBSANK
Get a Quote!
Vess A6800 4U/24-bay with 144TB (6x24) 3.5" 7200rpm SATA HDD"
Win10 OS Installed
#VA6800HBSARK
Get a Quote!
Vess A6800 4U/24-bay with 192TB (8x24) 3.5" 7200rpm SATA HDD"
Win10 OS Installed
#VA6800HBSASK
Get a Quote!
Vess A6800 4U/24-bay with 240B (10x24) 3.5" 7200rpm SATA HDD"
Win10 OS Installed
#VA6800HBSACK
Get a Quote!

Click here to jump to more pricing!

Overview:

VessThe Vess A6000 Series storage appliance is specially engineered for IP video surveillance deployment on medium to large scale; ideally suited for surveillance systems in banks, malls, casinos, factories, warehouses, commercial, residential, governmental or private enterprises. The subsystems are capable of continuous recording and playback operation without dropping frames.

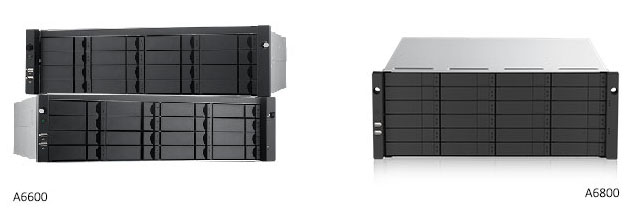

Higher Capacity with Better Design

Two options for large HDD capacity enclosures are available: a 3U 16-drive (Vess A6600) and 4U 24-drive (Vess A6800). Combined with Promise Technology know how creates an outstanding combination of performance and reliability for Midsize to Large-Scale surveillance deployments. For larger storage system requirements, the system is cost effect using the Promise JBOD products to extend capacity without the added expense of an additional RAID server.

Higher Capacity with Better Design

Reduces Deployment Costs and Complexity

Support and equipment costs are reduced; without a separate RAID storage unit to manage, there is no longer a need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, the Vess A6000 Series reduces interoperability conflicts caused when integrating different hardware.

Reduces Deployment Costs and Complexity

SMARTBOOST Technologies

PROMISE proprietary SMARTBOOST Technology provides the most stable and high performance storage solution for your surveillance system. Performance that can be limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST Technology. With the optimized software features and FRU hardware design, you have the best stability and storage performance with the best C/P ratio.

Predictive Playback

Predictive Playback

Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.

Remote Active Service

Remote Active Service

Takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.

Sequential Pattern Recording

Sequential Pattern Recording

Eliminates the heavy workloads caused by random write patterns; this feature monitors recording patterns and collects data in the cache buffer and writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.

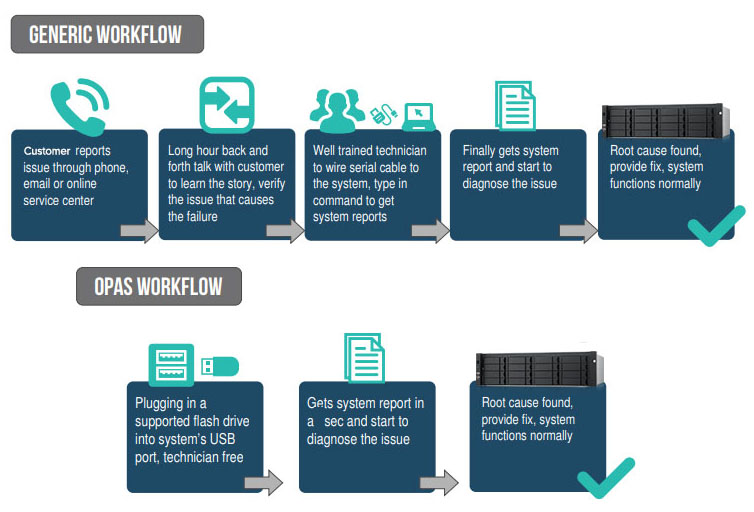

Reduce the complexity of Maintenance by OPAS

One Plug Auto Service (OPAS), a feature unique to Promise’s video surveillance solutions, ooffering user convenience, reduced complexity, lower maintenance cost and streamlined technical support. OPAS enables users to easily collect all the necessary logs and data used by the Promise support team to analyze.

Reduce the complexity of Maintenance by OPAS

Features and Benefits:

  • Optimized for Surveillance: Storage appliance optimized for IP video surveillance.
  • Extensive VMS Support: Certied/tested with the world’s leading video management software.
  • Midsize to Large-Scale Solutions: Ideal for more than a hundred fullHD IP cameras, perfect for banking, retail, gaming, manufacturing, and more.
  • Cost Eective & Scalable: Integrated solution results in less management overhead; it’s easy andeconomical to expand storage capacity using the Promise JBOD external storage series.
  • Easy to Administer & Maintain: Hot swappable drive bays, redundant power supplies, & One Plug Auto Service (OPAS) ensure Vess is incredibly easy to administer and maintain.

Specifications:


Vess A6800 Specifications
Camera Range1 200
Form Factor 4U, 19" Rackmount
Number Of Drives 24 Drives (3.5")
Drive Type 12Gbs SAS/ 6Gbs SATA @ 3.5”, SSD capable @2.5”2, Hot Swappable
Controller Single
System Processor Intel Core i7-7700
System Memory 8GB Default (Max 64GB)
I/O 2x Gigabit Ethernet
Internal Storage (M.2) 128GB
Storage Expansion Optional Vess SAS and iSCSI Storage
Max. # of HDDs Supported Up to 144 drives through iSCSI/SAS JBOD expansion
USB Ports 4x USB 3.0, 2x USB 2.0
PCI Express Ports 1x8-lane Gen3
Graphics D-sub x 1, DVI x 1, HDMI x 1
Audio I/O 5x 3.5 mm + 1x SPDIF Audio Jack
RAID Levels 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60. Any combination can exist at the same time
Hot spares Multiple global or dedicated hot-spare drives with revertible option
Max LUNs per system/array 256/32
Supported OS (64-bit) Windows 10, Windows 2016
Management Tools/Interface Graphical UI/SNMP via Ethernet, CLI via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration
Appliance Mode Surveillance Optimization @ Arrays in Normal and Degrade
Event Notification Email, SNMP, Buzzer, LEDs
AC Input 100 ~ 240 VAC, 60 ~ 50Hz
Current (Maximum) 8-4A
Power Supply Redundant 550W for each power, Hot swappable N+1 Design (80 PLUS certified)
System Controller Replaceable FRU design
Temperature 5° ~ 40°C (-40° ~ 60°C non-operational)
Dimensions 173 x 503 x 447 mm (6.8 x 19.8 x 17.6 in)
Weight System W/O HDD: 19.26 kg
System W/ HDD: 35.36 kg
Safety and EMI Certification CE, FCC, VCCI, RCM, BSMI, KC, (EMI Class A), CB3, cTUVus4
Warranty 3 year limited warranty5
Optional Accessories Sliding Rail, 4/8/16 GB DDR4 Memory

1 The ideal camera range were the test output with fully populated enclosure and 16GB memory under 1080P/30FPS/5Mbps, H.264
2 For 2.5” SSD/HDD it will need to use different optional carriers.
3 CB Report is tested according to IEC/EN 60950-1 and IEC/EN 62368-1
4 cTUVus label marking is tested according to UL 62368-1 and CAN/CSA-C22.2 NO. 62368-1.
5 Available to purchase the extra 2 years warranty to total 5 years warranty.

Views:

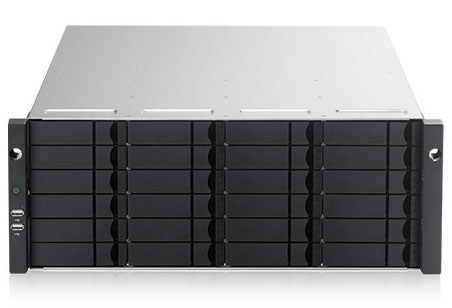

Front View
Front View

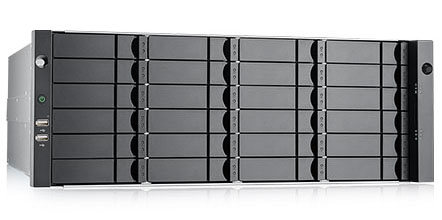

Left Angle View
Left Angle View

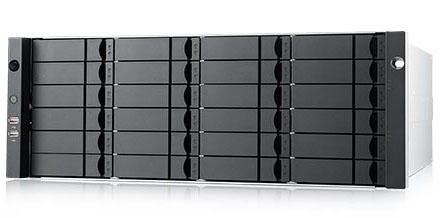

Right Angle View
Right Angle View

Documentation:

Download the PROMISE Vess A6000 Series Datasheet (PDF).
