PROMISE Vess A8020
Storage Solutions Designed for Surveillance


PROMISE Vess A8020

Promise Products
Vess A8000 Series

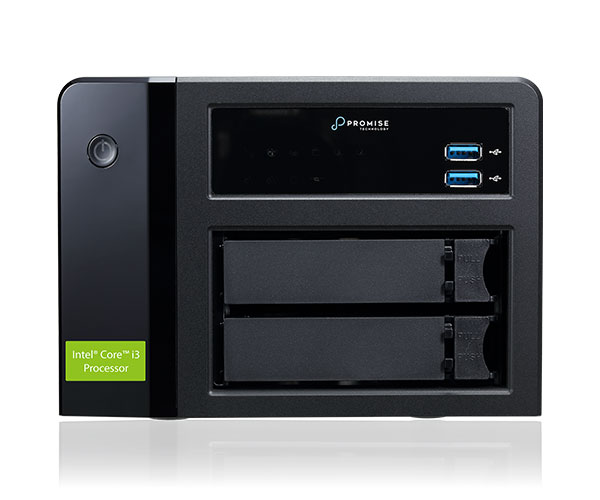

Vess A8020 Compact Storage Appliance
#A8020
Get a Quote!

Click here to jump to more pricing!

Overview:

Optimized for Surveillance

Specially engineered for IP video surveillance deployment on smaller scale networks that require robust, reliable video storage and management; or where discretion and physical security of the system hardware is required, such as banks, ATMs, luxury shops.

PROMISE Vess A8020

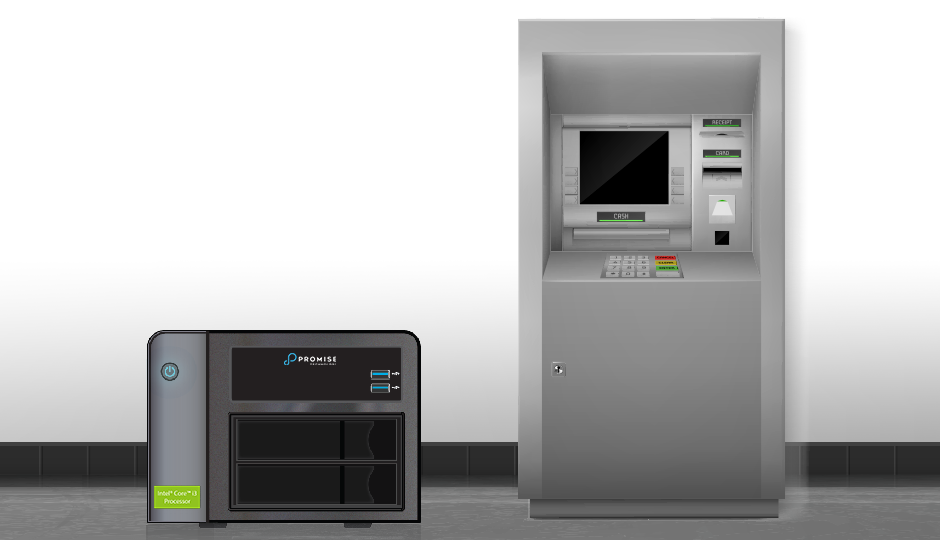

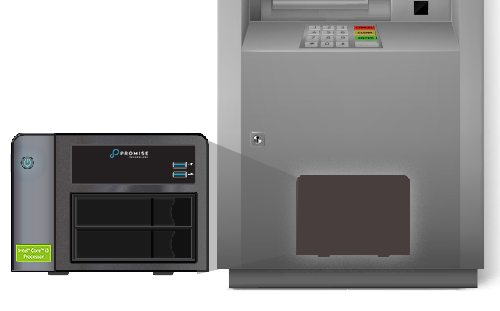

Compact Size for Discreet Deployment

Small dimensions of the enclosure allow the unit to be discretely hidden on site in a small space or hardened security container.

PROMISE Vess A8020

PROMISE Vess A8020

Reliable and Affordable x86 Platform

For the critical HW/SW requirement of surveillance systems, the proven stability and reliability of the Intel x86 platform is the best choice. Vess A8020 offers the Intel x86 platform in an affordable design.


SMARTBOOST Technologies

PROMISE proprietary SMARTBOOST Technology provides the most stable and high performance storage solution for your surveillance system. Performance that can be limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST Technology. With the optimized software features and FRU hardware design, you have the best stability and storage performance with the best C/P ratio.


Predictive Playback

Predictive Playback

Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.

Remote Active Service

Remote Active Service

Takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.

Sequential Pattern Recording

Sequential Pattern Recording

Eliminates the heavy workloads caused by random write patterns; this feature monitors recording patterns and collects data in the cache buffer and writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.

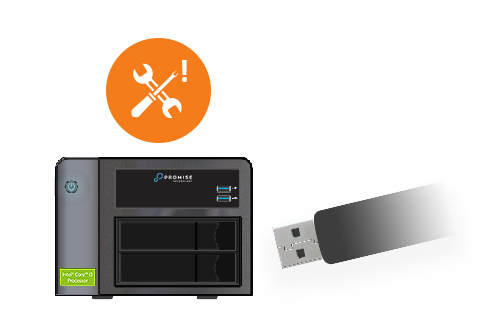

Reduced Complexity of Maintenance with OPAS

One Plug Auto Service (OPAS) is a feature unique to Promise Vess A series solutions. OPAS offers greater user convenience and reduces maintenance complexity of technical support. OPAS enables users to easily collect all the necessary logs and data used by the Promise support team to analyze the status of Vess A-Series Storage appliances.

PROMISE Vess A8020

Features and Benefits:

  • Extensive VMS Support: Certified and tested with the world’s leading video management software.
  • Cost Effective Integrated solution results in less management overhead.
  • Easy to Administer & Maintain Hot swappable drive bays and One Plug Auto Service (OPAS) ensure Vess A8020 is easy to administer, maintain and service.
  • Ideal for Small Installation Perfect for small surveillance network in small space or hardened security unit where failure is not an option.

Specifications:


Vess A8020 Specifications
Camera Range 16
Form Factor Tower Base
Number Of Drives 2 Drives (3.5")
Drive Type 6Gbs SATA @ 3.5”
# of Controllers Single
System Processor Intel® Core i3-9100E
System Memory 8GB Default (Max 32GB)
Network Interface 2x Gigabit Ethernet
Internal Storage (M.2) 128GB
Storage Expansion Optional Promise Vess R/J series via iSCSI
Storage Expansion Optional Promise Vess R/J series via iSCSI
iAMT Support YES
USB Ports Front: 2x USB 3.0, Back: 4x USB 3.0, 2x USB 2.0
Graphics 1x D-sub VGA, 1x HDMI, 1x DP port
Audio I/O 3x 3.5mm Audio Jack
RAID Levels 0, 1
Max LUNs per system/array 16/2
Supported OS (64-bit) Windows 10, WSS2019
Management Tools/Interface Graphical UI/SNMP via Ethernet, CLI/CLU via Ethernet or Graphics, OPAS Service via USB, iAMT, SDK or API for Integration
Appliance Mode Surveillance Optimization @ Arrays in Normal and Degrade
Event Notification Email, SNMP, Buzzer, LEDs
AC Input 100 ~ 240 VAC, 60 ~ 50Hz
Current (Maximum) 2A
Power Supply 250W Single ATX
Temperature 10° ~ 35°C (-40° ~ 70°C non-operational)
Dimensions 185 x 245.2 x 130 mm (W x D x H)
Weight System W/ HDD: 4.86 kg
Safety and EMI Certification CE, FCC, VCCI, RCM, BSMI, KC, (Class A), CB
Warranty 3 year limited warranty
Optional Accessories 8/16GB DDR Memory

Documentation:

Download the PROMISE Vess A8020 Datasheet (PDF).
