PROMISE VessRAID 1000f Series
Fiber/iSCSI-to-SAS/SATA RAID 6 Storage System
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:

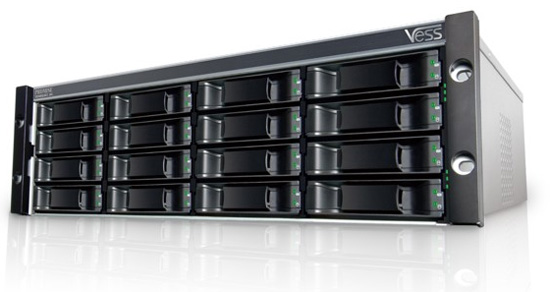

The VessRAID 1840f is equipped with two ports of 8Gbps Fiber Channel and two ports of Gigabit Ethernet designed for file and block level access in a robust 3U-16 bay chassis and has one SAS-wide port for expansion enclosure connection.
System Highlights and Benefits
- 16 hot-swappable SAS/SATA 6Gb/s2 or 3Gb/s drive support in a robust 3U chassis
- Dual-port FC 8Gb and dual-port iSCSI I Gb links
- Link aggregation and jumbo frames support
- SMB/CIFS, NFS, FTP support
- Microsoft Active Directory Support
- Client-to-Host Volume Clone, Box-to- Box Replication, and NAS Fusion
- Scale up to 1 12 Hard Disk Drive via VessJBOD Expansion units
- Over 1300MB/s disk sequential throughput
- Dual hot-swap redundant power supply unit with 80PLUS Certified
- OPAS and UPS Monitor via USB service
- Embedded web-based management via Ethernet WebPAM PROe
- Power Scheduler Operation
- MAID 2.0 support
- Wake-on-LAN support (VessRAID)
- Wake-on-SAS support (VessJBOD)
2Initiator still operates at 2Gb/s mode
| FC SAN | |
|---|---|
| VessRAID 1840f | |
RAID 0, 1, 1E, 3, 6, 5, 10(0+1), 50, 60               |
|
Features:
Unified Solution
For businesses that are always committed to use Fiber Channel storage network, VessRAID allows them to upgrade their existing data storage from 4G to 8G infrastructures at lower costs. Best of all, the product is a unified networked storage designed to support file and block level data transfer via IP and Fiber Channel ports. The multiprotocol-support VessRAID is a unified platform making network-attached storage (NAS) and storage-area network (FC and iSCSI) data transport possible in one system.
Energy Saving
Being green is important for business now. VessRAID features advanced hardware design using 80PLUS-certified power supplies, and supports complete levels of MAID2.0 that both can greatly improve system's power effectiveness in management and reduce heat generation. In addition, the power scheduling function allows users to power off the system and performs a disk-to-disk backup or restore on a scheduled basis. As the task completes, system returns to standby until the next one starts, resulting in a considerable 70% cost savings annually.
Smart Management
OPAS is designed to reduce maintenance complexity and streamline an easier tech support workflow as much as possible. It provides a new level of user convenience unique to PROMISE. With a simple USB stick plugging in, it can perform system information retrieval, firmware auto upgrading, script for quick installation and password resetting.
Competitive Pricing
Economic slowdown worldwide have caused a number of businesses to either cut their IT budgets or delay their purchasing decisions for new storage equipments, yet there is still need for inexpensive and feature-rich storage solutions as data grows on a day to day basis. The VessRAID family of products provides a reliable data protection you expect from PROMISE to keep data online longer through a cost-effective way for businesses to easily meet storage demands.
OPAS (One Plug Auto Service):
 |
 |
 |
 |
System data and configuration can be transferred to a USB 2.0 memory stick connected to the integrated USB 2.0 port. The information can be forwarded to engineer for technical service or support.
Specifications:
| VessRAID 1840f Specifications | |
|---|---|
| System and Controller Features | |
| Form Factor | 3U |
| Drive Support | 16 Drives (3.5") SAS/SATA (6Gb/s or 3Gb/s), NCQ, TCQ |
| Controller | Single (Intel' 1OP3481.2GHz) |
| Host Channel | Dual Ports full-duplex 8Gb FC and Dual Ports full-duplex 1Gb iSCSI |
| PROMISE Expansion Enclosure | One Port SAS-wide (x4) for VessJBOD series |
| Max. Drives Supported | 112 |
| Data Cache | 1GB"2GB ECC cache memory with Optional BBU (Battery Backup Unit) |
| Fiber Features | 8/4/2Gbs manual or auto-negotiation Support N_Port, NL_Port, and auto-detect topology negotiation Point-to-Point, Arbitrated loop (FC-AL, FC-AL2) and Switched Fabric topologies Fibre Channel Class of Service 3 Fibre Channel SCSI protocol (FCP) |
| iSCSI Features | Error Recovery Level 0 Link Aggregation and Jumbo Frames w/ up to 64 Concurrent Sessions CHAP, iSNS and DHCP Microsoft iSCSI MPIO Support |
| Command Queue Depth | 1024 |
| NAS Features | |
| Supported Network Protocols | SMB/CIFS (Apple, Microsoft), NFS (Linux/Unix), FTP |
| Data Services | Client-to-Host Volume Clone, Box-to-Box Replication, NAS Fusion |
| Max. Size per Volume/No. per Volume | 16TB/32 |
| Concurrent Sessions/Memory | 64/1GB, 128/2GB |
| User Management | Microsoft ADS |
| SmartNAVI Features | Backup/Restore Data, Scheduled Operation, User Management, Share Folder Administration, Auto-detect VessRAID and IP Assinment |
| Operational Features | |
| RAID Levels | 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60 |
| Hot spares | Global or Dedicated w/ revertible option |
| Max. LUNs per subsystem/array | 256/32 |
| Variable Block and Sector Size | 64KB - 1MB stripe block sizes 5128, 1KB, 2KB, 4KB sector size |
| Disk Data Formats | Supports Disk Data Format (DDF) for drive roaming between VTrak and VessRAID |
| System Management | |
| Supported OS | Windows 2000, XP, 2003, Vista, 20081 RedHat Linux, SuSE Linux, FreeBSD 7.0 VMWare ESX 4.0, ESX 4.0 U1 |
| Management Tools | WebPAM PROe/SNMP via Ethernet CLI/CLU via RJ-11 or Ethernet LCD Control Panel (Optional) OPAS/UPS Monitor via USB service Power Scheduler Control |
| Management Interfaces/Protocols | Ethernet, RJ-11 Serial Port, USB SNMP, SSL, Telnet, SLP |
| Event Notification | Email , SNMP, NETSEND, Buzzer, LEDs, LCD Control Panel |
| System Information | |
| AC Input | 90' 264 VAC, 47' 63Hz |
| Current (Maximum) | 8A (100V); 4A (240V) |
| Power Supply | Dual 45OW 90-264V full-ranging w/PFC 8OPLUS Efficiency Hot swappable and redundant |
| Power Consumption | 241.8 Watts (w/ SAS drives); 51.3Watts (w/o drives) |
| FAN | N+1 Design |
| Temperature | 5~40 C2(-40°' 60'C non operational) |
| Relative Humidity | 10% to 80% non-condensing |
| Dimensions (H x W x D) | 130.1 x 446.2 x 461 mm; 5.1 x 17.6 x 18.1 in |
| Weight | 15 kg (33.07Ibs) w/o drives; 25.4 kg (56 Ibs) w/ drives |
| Safety/EMI | CE, FCC Class B, VCCI, BSMI, CB, KCC, C-Tick, UL/cUL, TUV |
| Base Configuration | VessRAID 3U Unit w/ Drive Carrier R111-to-DB9 Serial Data Cable, Power Cord (Dual PSU: 2) Quick Start Guide, Set of Screws, CD (Product Manual, SNMP files, QSG) |
| Warranty and Support | |
| Warranty | 3 years limited warranty3 |
| Supported Hardware Options | LCD Panel, Front Bezel, Sliding Rail, Battery Backup Unit, SAS Cable, Fiber Cable, 8Gb SFP Optical Transceiver |
1Microsoft' WHOL for Windows Server 2003 and 2008
2Operational Temperature between 5' -- 35'C if BBU installed
3BBU is covered by one year limited warranty
Documentation:
Download the PROMISE VessRAID 1000f Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
VessRAID 1000f Series includes: Enclosure, 8-2TB Drives, 2-US power cords, Quick Start Guide, Product CD, slide mount assembly and HDD screws.
